Marshall Power Brake info at Blame
Power Brake PB-100 -- list $379, Guitar Center price $279
Power Brake PB-100 WSP (white) -- list $385, Guitar Center price $299 (not in stock at this store)
Cooling fan.
Does not have a cab-sim filter.
Has no Line Out jack.
12-position rotary knob. 3dB increments. Postion 12 is speaker muted, making a load box. 2 speaker outs. If the attenuation is at -33 you could probably use that as a line out. The 12th step on the knob is the "dummy load" position, permitting use without a guitar speaker.
There is a direct, straight-thru position with no attenuation on the Hot Plate and Power Brake, allowing easy A/B-ing of the tone with and without attenuation.
Randall Aiken wrote: "I am sorry to say that I haven't taken the time to dissect the Power Brake (I use it for gigging on the weekends, but as soon as the THD comes I suspect it will get taken apart), so I don't know what is in it, but I believe the cooling fan doubles as the inductive load. It actually turns faster the louder you play."
Legends of Guitar: The Quest for Ultimate Tone. Best of Guitar Player. Sonic secrets -- Hendrix, Clapton, Van Halen, Stevie Ray, Slash, & more. Distortion tips. Eq- craig anderton. Decoding distortion. R. Aspen Pittman. Eric Johnson. Tone factors in solidbody guitars. 1995. Has a review of soaks, which appeared in Guitar Player Aug 1993. Covered:
Reviewed page 60 Guitar Shop Feb 1995. Doesn't even mention the tone sacrifice at high or total attenuation. ______________
>I wanted to know what you've heard about the Marshall Power Brake. So far, I've lost 4 output transformers with the device. In one year of gigging I burned up two original output transformers in separate 1971 Marshall Super Lead amps. My problems have continued. Marshall claims they have never seen this problem with the Power Brake. However, Marshall gave me two new transformers, rather than checking the Power Brake. I've talk to people that like the Power Brake, but have they really used it for a gig schedule? Unfortunately, I've had a lot of trouble with the device. My speaker cables have been replaced several times and all the impedence settings match. Any suggestions?
Hendrix went through amps and cabinets like popcorn. Running your gear hot is likely to fry it. I have not heard anything about wear-and-tear on power tubes and output transformers, caused by the Marshall Power Brake.
The Power Brake sounds like one of the most authentic, useful approaches.
But does the speaker cabinet really sound any good at very low volumes?
Isn't speaker overdrive a major part of cranked amp tone? I suspect that a
genuine speaker cabinet is important, but we know that power tube saturation
is important too, because a solid-state amp driving a good cabinet does not
allow power-tube saturation, and thus sounds flat.
>The A/B capability is what convinced me
of the transparency of the THD device, at least to -12 dB. I think
too many things have to change to really get that same cranked tone
at very low levels. I live on a large property, so my main concern
was for preventing ear damage while making minimal to no sacrifices
in the area of overdrive tones. Once you throw out the speakers working
hard and the acoustic feedback to the guitar, you've removed some
important tonal contributors.
-- D.R.
official product page - "The Master Volume control on your valve amp makes it sound good at low volume, but ALL valve amps sound better cranked. This is a scientific fact of life. There are other attenuators or load boxes available, but they don't provide the right type of inductive load that makes your amp think it's connected to a speaker. At best, these other devices cause your amp to sound thin and feeble. At worst, they can blow your valves output transformer -an expensive proposition. The Marshall Power Brake is the only widely available power attenuator that delivers great sound - Safely. Marshall PB100 - Lets your amp cook, without frying."

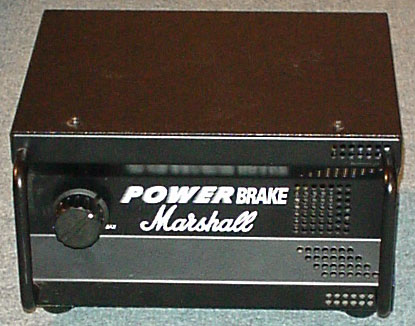

from http://www.fbk.eur.nl/BIT/ALGEMEEN/MEMBERS/MHM/gear/marshall_powerbrake.jpg

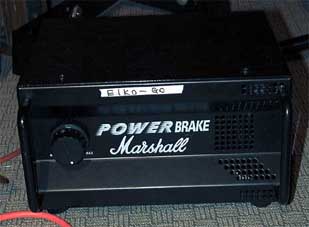

from http://home.interlink.or.jp/~eiko-go/studio/MYEQUIPMENT.html

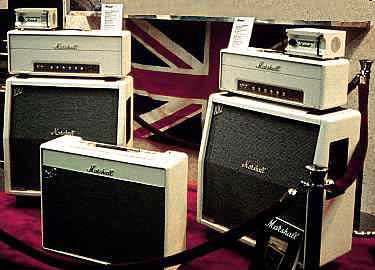

Above and the white pictures are from BLAME Power Brake page at MarshallArts
Click these custom links to find the latest information and discussion about this product.
Article at Harmony Central (pending)
user reviews for PB-100 at Harmony Central (effects)
user reviews for PB-1 at Harmony Central (amps)
user reviews for PB-100 at Harmony Central (amps)
search newsgroup postings at Deja.com
search newsgroup threads at Remarq.com
Here are some hits::
Messages 1-100 of about 300 matches for search "Power Brake":
Date Scr Subject Newsgroup Author
