Plexi Palace dealer page - $159
Using a variac to correct voltage to 110 VAC - Plexi Palace
MCM Variac official product page - "10A Variable (Autotransformer). Gives you the ability to vary line voltage between 0-130VAC. Perfect way to safely troubleshoot power supplies, regulators, output sections, etc. Built-in ammeter shows current draw to help identify shorts before they can cause costly component failures. Replaceable fuse protection. Three prong grounded cord and socket provides convenience and safety. Order Number 72-110. Description: TRANSFORMER. 1 year warranty.. In stock. Currently in production. $99.95"
A variac is a power supply that goes between the wall socket and the guitar amp. It can reduce the supply voltage from 110 volts AC, or 140 volts in my house, to lower, such as 50 volts. This causes the power tubes to saturate at lower power levels. A related but even more powerful idea is that of Power Scaling, used in London Power amps (search the home page for "london").

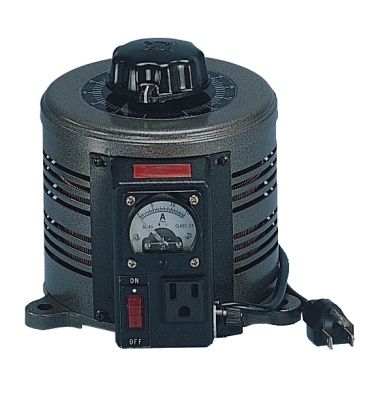

MCM Electronics sells a variac. (800) 543-4330. MCM Electronics catalog 42B, page 176: Tenma 10A Variable (Autotransformer). 1 yr warranty. Varies line voltages between 0 and 130 VAC. Built-in ammeter shows current draw to help identify shorts. Fused design enables limiting current by changing fuse value (10A max). 3-prong graded cord and socket. Input: 120V, 60Hz. Output 0-130 VAC. Current: 10A, 1.3KVA. Fuse: 10A AGC (included). Non-isolated. Order # 72-110. Description: 10A Variable (Autotransformer). Ea: $99.95.
You might want to read all of the relevant postings, paying special attention to the ones relating to what happens to your filament voltages (assuming you want to use it on a tube amp that is) when you use the Variac. Some people recommend not using a variac on an amp you care about. Your results may vary.
You can buy a Variac from most any place that sells electronics test equipment. The Mouser catalog lists a couple, with the cheapest one being $425. Some people have built one for less.
Date: Wed, 18 Nov 1998 18:43:15 -0500
From: David Crippen
>My friend Victor Mason at the Plexi Palace in California (with some authority, I think) says that a Variac is easier on the tubes than a dummy load or attenuator, and the tone is more pure with less of the undesirable type of distortion. He particularly dislikes the tone product from the Marshall Power Brake. With the Variac, the volume and resulting tone can be more acurately titrated together and independently controlled. I am really happy with my Variac setup.
>Where can I get a Variac? I would sure like a product page URL to link to.
>Check with Victor Mason. He got me mine.
Victor Mason
Plexi Palace - specializes in the sale, repair, restoration and modification of vintage Marshall, Vox, Hiwatt, Park and Fender tube amplifiers.
21065 Bear Valley Rd. #2
Apple Valley, CA 92308
(888) 517-2166 toll free
(760) 961-8324
http://www.vintageamps.com
plexi at iguitar.com
I spoke with Victor. The Tenma brand variac has a current meter, variable output, with probably a 2 year warranty. $159 at Plexi Palace. Handles up to 10 amperes of electric current; a 100 watt Marshall only uses 4 amps. This is far less than the $400-800 typical price for a high-end, big-name variac such as Tectronics, B&K. For cathode-biased amps such as Fender Pro Jr. 15 watt amp with 2 6V6's, or VOX, he thinks a variac might not work. A variac can take a 100 watt Marshall plexi down to 5 watts, when you pull 2 tubes and run the variac at 55 volts. A variac works just with solid state rectifiers, not with tube rectifiers, because with a tube rectifier, the heater voltage gets reduced too. He offers the THD Hot Plate attenuator for $249. A variac is also good for amps that are meant for 105 or 110 volts, rather than 130 volts; 130 would damage the amp. He suggests using a variac and attenuator in conjunction. For a 15-watt amp, he recommends a power attenuator.
> I don't have any idea where we can get this variac. But I believe Eddie VH was using a variac that was made by "Homite Voltage Regulators" on his earlier VH albums.
Boelan wrote:
There are lots of resources on the net where you can find these things, such as: http://www.angela.com - call Steve. He'll be glad to help. Lot of the tube hi-fi places carry them. Word has it that it is not a great idea to be using these things unless you're really careful. Go to alt.guitar.amps and ask Ned or Lord Valve or one of those guys. They could give you more of the pro's and con's of using them as well as probably telling you where you can get one. And I'm sure they'll be happy to sell you a bunch of spare tubes and amp parts you might need in case the amp takes a dive.
